Machinable soft magnetic composite

Fluxtrol 100

Highest thermal conductivity, saturation flux density and flexural strength

Fluxtrol 100 has the highest thermal conductivity, saturation flux density and flexural strength of the Fluxtrol family of materials. Fluxtrol 100 has similar magnetic properties in the favorable direction to Fluxtrol A, but with significantly less anisotrophy both thermally and magnetically. Fluxtrol 100 has good machinability when sharp tools and high spindle speeds are used.

Note: There are many variables involved in an induction process. In order to utilize the fullest potential of our product, you must help narrow down the parameters you are operating with. Each grade of Fluxtrol material has its own distinctive properties that are beneficial to a certain range of electrical and design parameters.

Contact Fluxtrol Inc. to receive more information about which material is right for you.

To buy Fluxtrol 100, contact us or request pricing and we will be in touch shortly.

Fluxtrol 100 on common coil styles

Typical induction coil configurations where Fluxtrol 100 is applied as a magnetic flux controller.

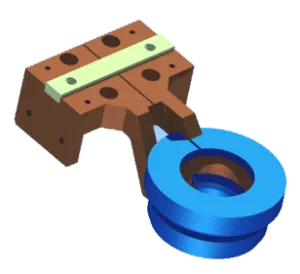

2 Turn O.D. coil with Fluxtrol 100
2 Turn O.D.
Hair Pin coil with Fluxtrol 100
Hair Pin
I.D. Multi Turn coil with Fluxtrol 100
I.D. Multi Turn
Pancake coil with Fluxtrol 100
Pancake
I.D. Single Turn coil with Fluxtrol 100
I.D. Single Turn
Split and Return coil with Fluxtrol 100
Split and Return
Transverse Flux coil with Fluxtrol 100
Transverse Flux

Fluxtrol 100 properties

PropertyUnitsFluxtrol 100
µr initialperpNone80
µr maximumperpNone132
µr initialparNone55
µr maximumparNone70
BsT1.6
ρΩ m2
κperpW/m-K28
κparW/m-K19
CTEperp1/K1.5 X 10-5
CTEpar1/K1.4 X 10-5
CpJ/g-°C0.45
Densityg/cm36.8
HardnessD scale93
Flexural StrengthperpMPA54.5
Flexural StrengthparMPA46.9
ModulusperpTangent 0.07% – MPA57,700
ModulusparTangent 0.07% – MPA52,400

perp = perpendicular and par = parallel to the pressing direction. Values are typical.

Fluxtrol 100 graphs

Fluxtrol 100 B-H Curve

Fluxtrol 100 B-H Curve

View data table
H (A/m)BperpBpar
2000.0220.014
5000.0660.039
10000.1530.081
15000.2430.125
20000.3330.171
25000.4130.217
30000.4890.263
35000.560.307
40000.6320.353
50000.7310.439
60000.8220.52
70000.8950.595
90001.0090.738
120001.1270.905
150001.211.03
200001.3111.18
250001.3831.283
300001.441.361

Fluxtrol 100 µᵣ vs H

View data table
H (A/m)µrperpµrpar
2009056
50010662
100012265
150013067
200013268
250013269
300013070
350012770
400012470
500011770
600010969
700010268
90008965
120007560
150006455
200005247
250004441
300003836

Fluxtrol 100 Losses vs Flux Density

View data table
Pv = aB2(1-B/b)f + cB2f2
SymbolDescription
PvPower Density (W/cm3)
BMagnetic Flux Density (T)
fFrequency (kHz)
a, b, cConstants
Fluxtrol 100 ConstantsValue
a1.82
b1.8
c0.006

Fluxtrol 100 Losses vs Frequency

View data table
Pv = aB2(1-B/b)f + cB2f2
SymbolDescription
PvPower Density (W/cm3)
BMagnetic Flux Density (T)
fFrequency (kHz)
a, b, cConstants
Fluxtrol 100 ConstantsValue
a1.82
b1.8
c0.006

Fluxtrol 100 Stress-Strain Curve

View data table
Flexure Strainperp (mm/mm)Flexure Stressperp (MPA)Flexure Strainpar (mm/mm)Flexure Stresspar (MPA)
0.000000.00.000000.0
0.000204.00.000190.7
0.0004011.90.000408.8
0.0005922.40.0005918.6
0.0008034.00.0007929.3
0.0010043.50.0010038.8
0.0011950.30.0011945.3
0.0013954.20.0014044.6
0.0014954.10.0015038.3
0.0016051.80.0016033.0
0.0018039.40.0018025.1
0.0020025.90.0020020.2

Fluxtrol 100 stock sizes

Rounds / billets

Size in InchesSize in Millimeters
.50 Ø x 2.004.50 Ø x 2.0012.7 Ø x 50.8114.3 Ø x 50.8
.67 Ø x 2.005.00 Ø x .2517.0 Ø x 50.8127.0 Ø x 6.3
.75 Ø x 2.005.00 Ø x .7519.0 Ø x 50.8127.0 Ø x 19.0
1.00 Ø x 2.005.00 Ø x 1.0025.4 Ø x 50.8127.0 Ø x 25.4
1.25 Ø x 2.005.00 Ø x 2.0031.7 Ø x 50.8127.0 Ø x 50.8
1.50 Ø x 2.005.50 Ø x 1.0038.1 Ø x 50.8140.0 Ø x 25.4
1.75 Ø x 2.005.50 Ø x 2.0044.5 Ø x 50.8140.0 Ø x 50.8
2.00 Ø x 2.006.00 Ø x .2550.8 Ø x 50.8152.4 Ø x 6.3
2.30 Ø x 2.006.00 Ø x .7558.4 Ø x 50.8152.4 Ø x 19.0
2.50 Ø x 2.006.00 Ø x 1.0063.5 Ø x 50.8152.4 Ø x 25.4
2.76 Ø x 2.006.00 Ø x 2.0070.1 Ø x 50.8152.4 Ø x 50.8
3.00 Ø x 1.006.50 Ø x .7576.2 Ø x 25.4165.1 Ø x 19.0
3.00 Ø x 1.256.50 Ø x 1.0076.2 Ø x 31.7165.1 Ø x 25.4
3.00 Ø x 2.006.50 Ø x 2.0076.2 Ø x 50.8165.1 Ø x 50.8
3.50 Ø x 1.008.00 Ø x .2589.0 Ø x 25.4203.2 Ø x 6.3
3.50 Ø x 2.008.00 Ø x .5089.0 Ø x 50.8203.2 Ø x 12.7
4.00 Ø x .758.00 Ø x .75101.5 Ø x 19.0203.2 Ø x 19.0
4.00 Ø x 1.008.00 Ø x 1.00101.5 Ø x 25.4203.2 Ø x 25.4
4.00 Ø x 2.008.00 Ø x 1.50101.5 Ø x 50.8203.2 Ø x 38.1
4.50 Ø x 1.008.00 Ø x 2.00114.3 Ø x 25.4203.2 Ø x 50.8

Rectangular blocks

Size in InchesSize in Millimeters
.25 x 1.00 x 4.006.3 x 25.4 x 101.51.25 x 1.25 x 3.0031.7 x 31.7 x 76.2
.25 x 1.50 x 4.006.3 x 38.1 x 101.5.25 x 3.12 x 8.756.3 x 79.2 x 222.2
.50 x .50 x 4.0012.7 x 12.7 x 101.5.25 x 4.25 x 6.506.3 x 107.9 x 165.0
.50 x .75 x 4.0012.7 x 19.0 x 101.5.25 x 6.50 x 8.756.3 x 165.0 x 222.2
.50 x 1.00 x 4.0012.7 x 25.4 x 101.5.38 x 3.12 x 8.759.6 x 79.2 x 222.2
.50 x 1.50 x 4.0012.7 x 38.1 x 101.5.38 x 4.25 x 6.509.6 x 107.9 x 165.0
.50 x 2.00 x 4.0012.7 x 50.8 x 101.5.38 x 6.50 x 8.759.6 x 165.0 x 222.2
.63 x .63 x 4.0016.0 x 16.0 x 101.5.50 x 3.12 x 8.7512.7 x 79.2 x 222.2
.63 x .75 x 4.0016.0 x 19.0 x 101.5.50 x 4.25 x 6.5012.7 x 107.9 x 165.0
.63 x 1.00 x 4.0016.0 x 25.4 x 101.5.50 x 6.50 x 8.7512.7 x 165.0 x 222.2
.63 x 2.00 x 4.0016.0 x 50.8 x 101.5.63 x 3.12 x 8.7516.0 x 79.2 x 222.2
.75 x .75 x 4.0019.0 x 19.0 x 101.5.63 x 4.25 x 6.5016.0 x 107.9 x 165.0
.75 x 1.00 x 4.0019.0 x 25.4 x 101.5.63 x 6.50 x 8.7516.0 x 165.0 x 222.2
.75 x 1.50 x 4.0019.0 x 38.1 x 101.5.75 x 3.12 x 8.7519.0 x 79.2 x 222.2
.75 x 2.00 x 4.0019.0 x 50.8 x 101.5.75 x 4.25 x 6.5019.0 x 107.9 x 165.0
1.00 x 1.00 x 2.0025.4 x 25.4 x 50.8.75 x 6.50 x 8.7519.0 x 165.0 x 222.2
1.00 x 1.25 x 4.0025.4 x 31.7 x 101.51.00 x 3.12 x 8.7525.4 x 107.9 x 222.2
1.00 x 1.50 x 3.0025.4 x 38.1 x 76.21.00 x 4.25 x 6.5025.4 x 107.9 x 165.0
1.00 x 1.50 x 4.0025.4 x 38.1 x 101.51.00 x 6.50 x 8.7525.4 x 165.0 x 222.2
1.00 x 2.00 x 4.0025.4 x 50.8 x 101.5

Other sizes and near-net shapes available on request: request pricing or contact us.

Compare Fluxtrol SMC grades

GradeTypeStandout properties
Fluxtrol AMachinableHighest maximum permeability and lowest magnetic losses at low to intermediate frequencies (favorable direction); good strength and thermal conductivity; readily machinable. High magnetic and thermal anisotropy.
Fluxtrol 100MachinableHighest thermal conductivity, saturation flux density and flexural strength of the family; magnetic properties similar to Fluxtrol A with much less anisotropy; good machinability with sharp tools and high spindle speeds.
Fluxtrol 50MachinableExcellent performance over a wide range of frequencies; good mechanical strength, machinability and thermal conductivity.
Fluxtrol 25MachinableGood performance over a wide range of frequencies; best elasticity of the family; excellent machinability; reasonable thermal conductivity.
Ferrotron 559HMachinableHighest dielectric strength and lowest losses at high frequencies; nearly constant permeability across flux densities and frequencies; regarded by many as the most machinable grade.
Ferrotron 559H OriginalMachinableSimilar to Ferrotron 559H with nearly constant permeability over a wide range of flux densities and excellent machinability.
Alpha-form MF / LFFormableMagnetic particles in a thermal-curing epoxy binder; molded onto the coil and oven-cured for quick, efficient installation on coils with low tolerances.
Fluxtrol LRMLaminate replacementDirect replacement for laminations; near-net shapes, lower coil-copper temperatures and shorter build time than lamination stacks.

Properties are qualitative. Grade selection depends on frequency, coil geometry, cooling and process: ask an engineer.
